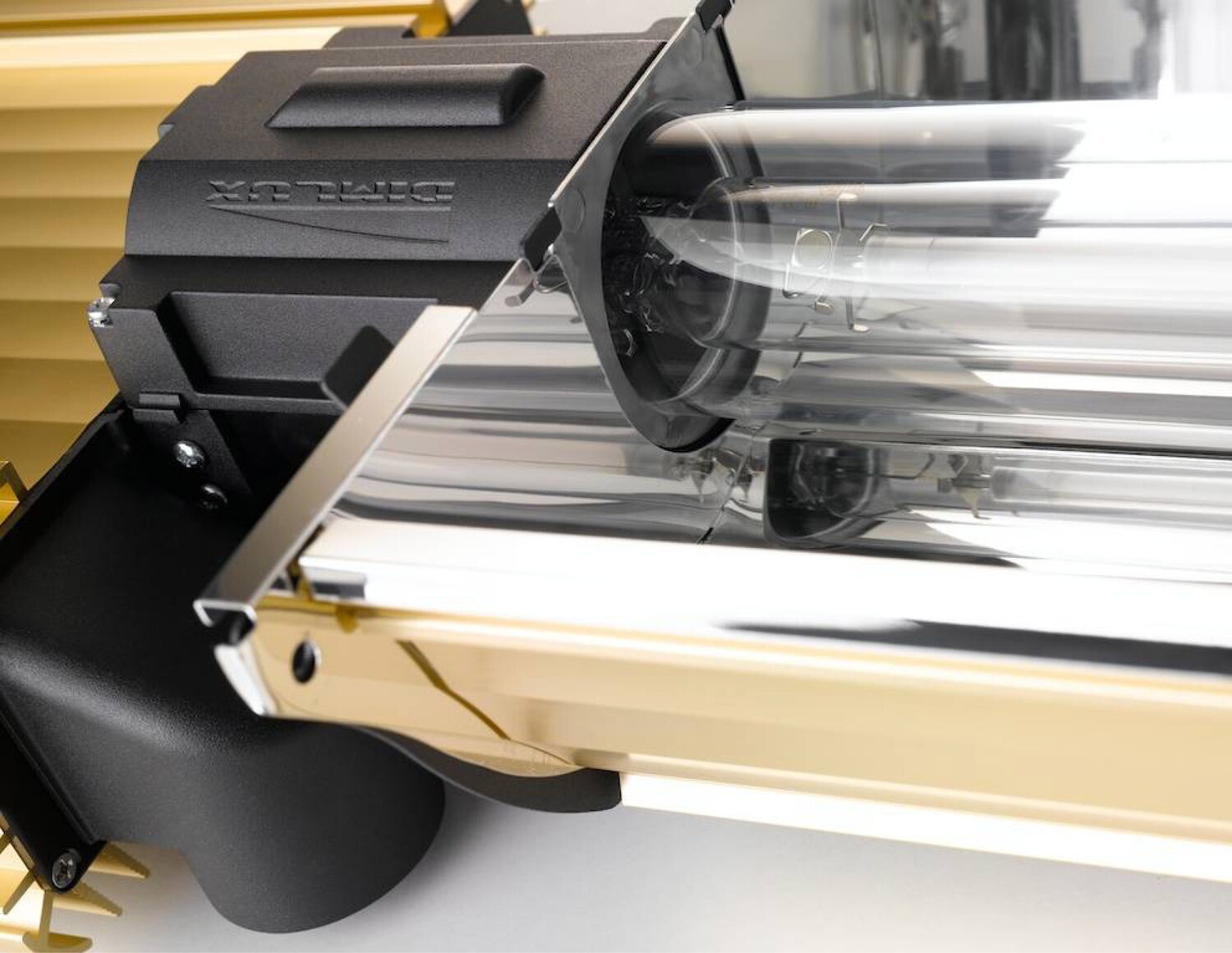

The Dimlux Expert Series 1000W is a complete fixture with electronic ballast. The fixture is supplied with the revolutionary Alpha Optics reflector. This reflector is designed according to the Single Bounce Clear Sight (SBCS) principle and is equipped with Miro Silver mirrors. This ensures the highest possible efficiency (98%) of all available horticulture reflectors is achieved. Provided with adjustable side reflectors for better overlap and to minimize wall reflection losses. Due to the open design of the reflector the lamps is passively cooled which is a benefit for the life and efficiency of the lamp.
By using a Nanotube the air can be extracted in parallel from the fixture, the lamp will always maintain the ideal temperature in order to maximize efficiency and life span. It is possible to achieve 20% lumens boost, this is only possible if the lamp is actively cooled.The NanoTube fixtures come with 2x50mm sockets which can be used to significantly reduce the room temperature by blowing 200m3/hour of cool air through each fixture. There are also optional ADD-ON reflectors available which can be placed to minimize the wall reflection loss even more. This reflector is replaceable.

Voltage: 230V
Input power @100%: 1000W
Input power @boost: 1200W
Input current @100%: 4.5A
Input current @boost: 5.2A
Input frequency: 50/60 Hz
Power factor: >0.95
System PPF: 2470μmol @1200W
Ultra High Frequency (UHF): Yes
Dimming: Yes
Light source: 1000W Philips Greenpower Extra lamp
Reflector: Alpha Optics 98
Controller: Maxi Controller
Measurements: 675 x 275 x 130mm
Weight: 6.3kg
